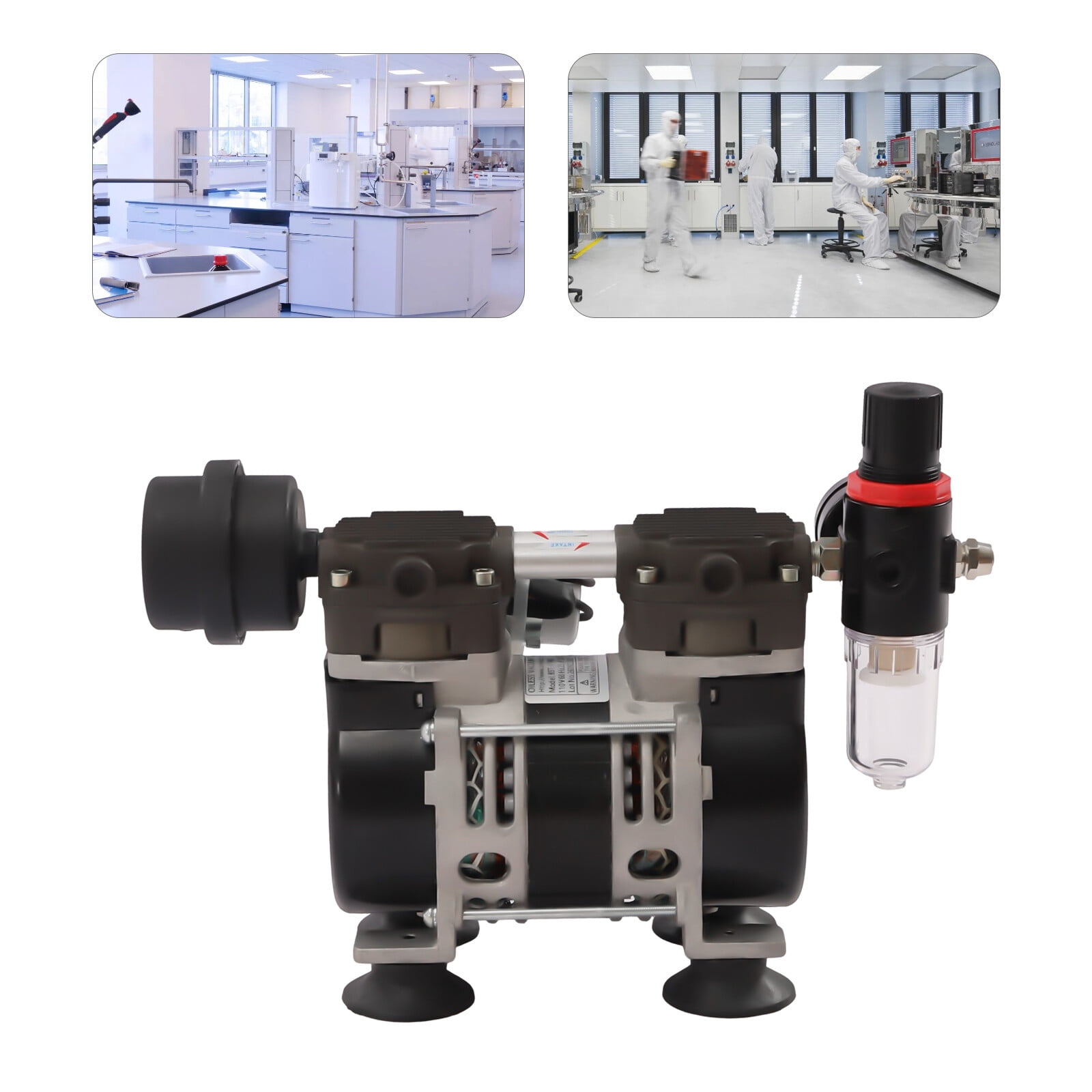

200 W Oilless Vacuum Pump Industrial Lab Oil Free Piston Vacuum Pump 60 L/min for Packaging Machines

<p>Description<br><br><br><br></p> <p>The operation of vacuuming is a step that cannot be ignored in laboratories as well as in major plants. Our vacuum pump works at 60 L/min(2.12cfm), which can save time in the lab, freeing up more time for you to drill down on your experiments or produce more products.<br><br><br><br></p> <p>Specification <br><br><br><br></p> <p>Model: BST-V190S<br><br><br><br></p> <p>Material: Copper, Iron and Aluminum<br><br><br><br></p> <p>Color: Black<br><br><br><br></p> <p>Plug Type: US<br><br><br><br></p> <p>Voltage: 110V, 60Hz<br><br><br><br></p> <p>Power: 200w<br><br><br><br></p> <p>Vacuum Level: -90kpa<br><br><br><br></p> <p>Pumping Speed: ≥60 L/min(2.12cfm)<br><br><br><br></p> <p>Noise: ≤48db<br><br><br><br></p> <p>Installation Screw: 4-M6<br><br><br><br></p> <p>Rotational Speed：≥1450r/min<br><br><br><br></p> <p>Package Size: 26*15*18cm/10.2*5.9*7.1inch<br><br><br><br></p> <p>Product Size: 17.2*9*14.2cm/6.8*3.5*5.6inch<br><br><br><br></p> <p>Gross Weight: 4.3kg/9.48lbs<br><br><br><br></p> <p>Net Weight: 4kg/8.82lbs<br><br><br><br></p> <p>Package Included<br><br><br><br></p> <p>1*Vacuum Pump<br><br><br><br></p> <p>1*Air Filter<br><br><br><br></p> <p>1*Silencer<br><br><br><br></p> <p></p> <p>Details<br><br><br><br></p> <p>Anti-corrosion Treatment: The surface of the pump body and gas contact parts are treated with special PTFE material, which has super chemical resistance.<br><br><br><br></p> <p>Suction Cup Base: The base of the machine comes with four suction cups, which fix the machine firmly on the table and will not slide.<br><br><br><br></p> <p>Pressure Gauge: The air filter is equipped with a precise pressure gauge on top, which makes it easy for you to observe the pressure value when pumping air at any time.<br><br><br><br></p> <p>Application<br><br><br><br></p> <p>It can be used in robotic automation, packaging machines, the medical industry, and aerospace labs. Precision instrumentation, electronic printing, shipbuilding and other fields.<br><br><br><br></p> <p>Notes<br><br><br><br></p> <p>1. Please note that this product cannot pump liquids or oil. If you are pumping liquid, you need to install an oil and water separator.<br><br><br><br></p> <p>2. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you place the order.</p>

• Key Features



  Powerful Pumping Power: The power of this vacuum pump of 200 watts and high rotation speed higher than 1450rpm/min provide it with super pumping power so that the vacuum degree can reach -90kpa.



  Rejection of Impurities: Without any working medium (oil-free), it is pollution-free. Meanwhile, the machine is equipped with an air filter to ensure the purity of air.
• Selected Material: It is made of high-quality iron, copper and aluminum and classic bearings, which are smooth running, durable and corrosion-resistant, allowing it to have a longer service life.

  Easy to Use/Maintain: The vacuum pump is plug-and-play and runs without any oil as lubrication, which eliminates the trouble of refueling for you. And the oil-free design makes the piston cylinder etc. not dirty and easy to clean.
• Safe and Reliable: Our special motor has passed CE certification and is equipped with overheating cut-off protector, which will automatically cut off the power after the temperature of the pump body reaches 266℉/130℃ to protect the motor from being damaged in long-term operation.

  Pure Copper Motor: It adopts a high-quality copper wire motor with low power, low-temperature rise and high energy efficiency ratio to provide long-term, stable and efficient operation for the vacuum pump.
• Low Noise: The pure copper motor and the equipped silencer make its operation noise less than or equal to 48 decibels, providing you with a quiet working environment.

  Compact Structure: This vacuum pump has a compact size of 6.8*3.5*5.6inch, so it won't take up too much space and is easy to store when not in use.
• Heat Dissipation: Both sides of the machine are designed with mesh cooling fans and a thickened cooling cylinder cover to dissipate the heat generated by the motor operation in time to further maintain the stable performance of the machine.
